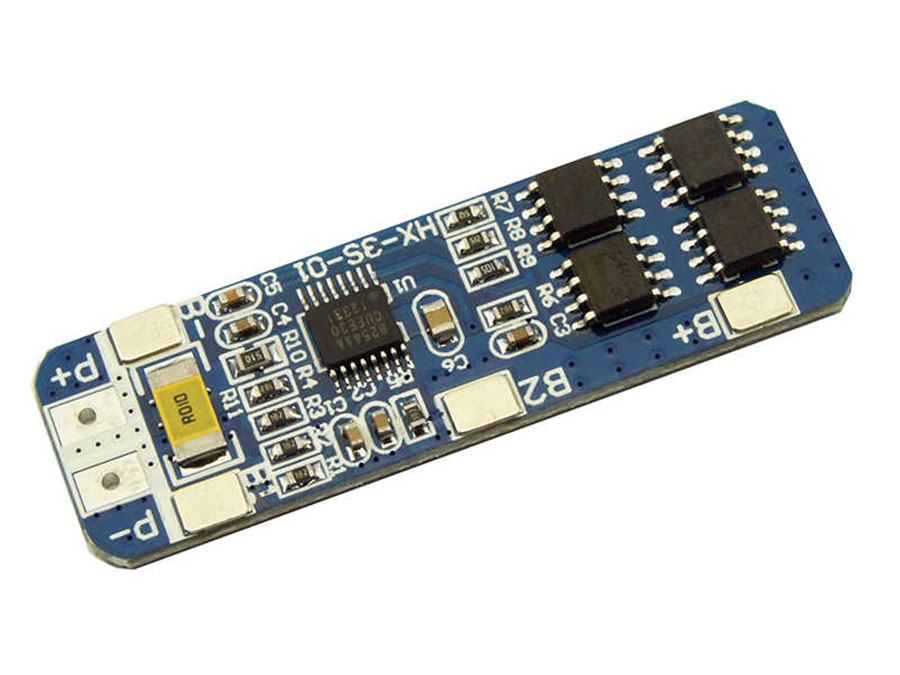

This protective battery charger module with BMS (Battery Management or Administration System allows the simultaneous charging of 3 lithium batteries type 18650 or similar (electrically speaking).
Its easy implementation, allows the user to manage the charge and discharge of its battery system, which may be part of an electrical or electronic project. It incorporates a protection system for overcharging, over-discharge and short-circuit
Input Voltage: 10.8 - 12.6 VDC
Charging Voltage Range: 4.25..4.35 VDC (± 0.05 VDC)
Over-discharge Voltage Range: 2.30..3.0 VDC (± 0.05 VDC)
Maximum Operating Current: 5-8 Amps
Operating Temperature: -40 to 50 ° C
Maximum Peak Current: 10 Amps
Idle Consumption: 6uA
Resistance: less than 60m O (0.02 O)
Lifetime: at least 30,000 hours

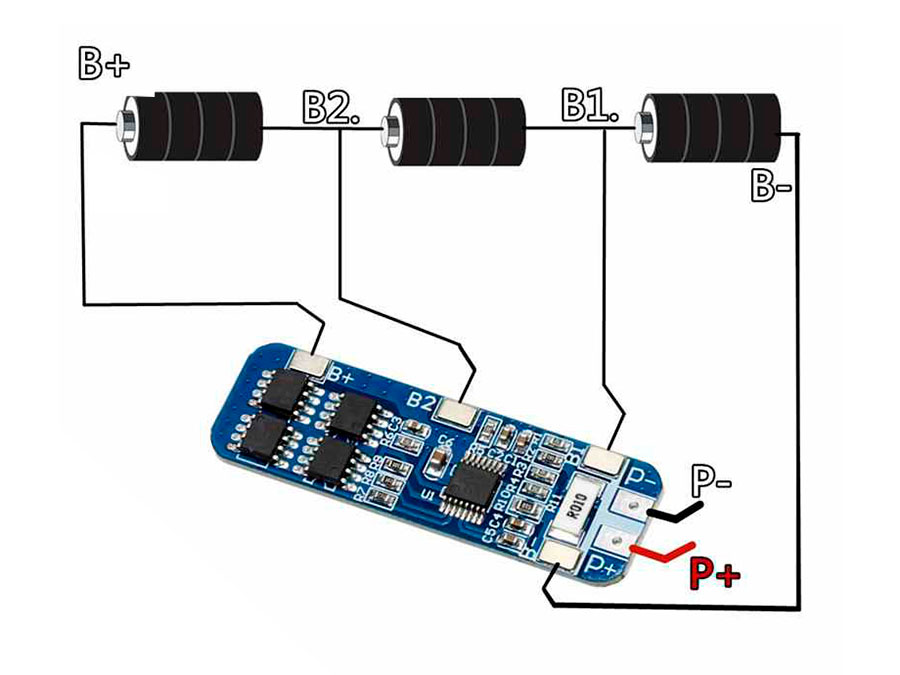

Can Charge 3 18650 Batteries or similar
Overcharge, Over-Discharge and Short Circuit Protection
Size: 50 x 16 x 1.0 mm
