Connectivity
Extension Cables

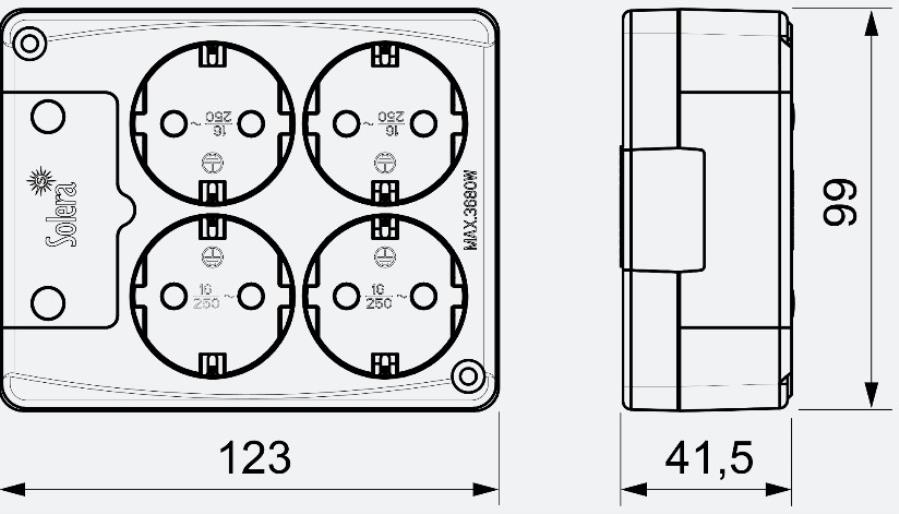

Solera 8104 - 4 Socket multi-plug and wall mounting - Square
Solera 8104 - 4 Socket multi-plug and wall mounting - Square
CX20204SOL
Data sheet
Previous
Next
Data sheet
Sold out. We can let you know when it is available.
Quantity
VAT NOT INCLUDED
VAT INCLUDED
7.00 €
8.47 €
Identification
EE Code
CX20204SOL
Brand
Solera
Model
8104
Manufacturer code
8104
EAN13
8423220239692
Features
Multiple socket with 4 x 2 Poles+Ground sockets of 16A 250V~
Maximum 3680W.
White colour.
Easy access screw terminal connection.
With holes for fixing to the wall.
Entries for 7x12, 10x16, 10x20 and 12x12 mm mini-channels.
Specifications
Features
Number of outputs: 4
Sockets: 2 Poles + Earth
Intensity: 16 A
Voltage 250 V~
Maximum power: 3680 W
Connection system: Screw
Mini-channel input: Yes, for 7x12, 10x16, 10x20 and 12x12
Technical data and regulations
Protection level: IP20
Fire resistance (GWEPT): 850 ºC
Heat resistance (Ball pressure): 125 ºC
Operating ambient temperature: -5 ºC; +60 ºC
Halogen-free: Yes
CE marking: Yes
Compliant with UNE/EN regulations: UNE-20315-1-1:2017; UNE-20315-1-2:2017
Compliant with REBT: Yes
Compliant with Regulation (EU) 2023/988 of the European Parliament and of the Council on general product safety: Yes
Compliant with European Directive 2011/65/EU (RoHS): Yes
Compliant with European Directive 2012/19/EU (RAEE2): Yes
Compliant with Regulations (RoHS): UNE-EN IEC 63000:2022
