Available
High-precision MCU control detects synchronously, 3 channels can work independently.
Superpower. Maximum output power 900W.
One station can solve multiple soldering/desoldering and rework tasks.
Large LCD screen. All parameters and messages can be displayed graphically.
Various welding tools can be automatically identified and the corresponding parameters loaded.
The temperature can be adjusted automatically. The software controls it more precisely and conveniently.
Alarm and fault display functions available.
Standby, buzzer, temperature lock and factory reset functions are available.
Communication interface support. Parameters can be set and controlled via computer.
Includes vacuum stylus for picking up or extracting small components.
Optional replacement tips:

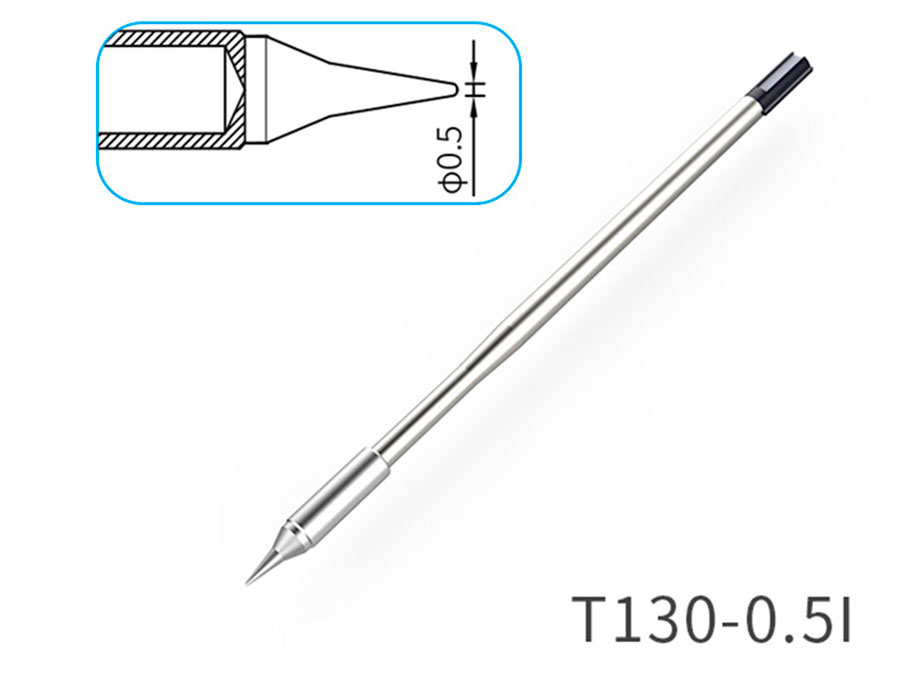

HRJF880: ATTEN T130-0.5I; Heating element with 4.6 mm straight conical tip Ø0.5mm

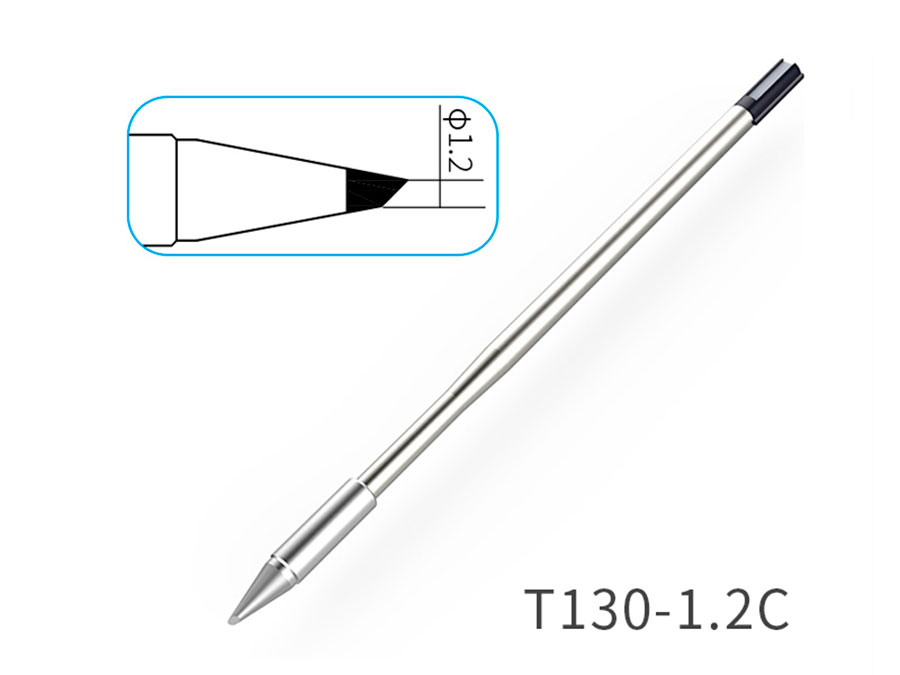

HRJF882: ATTEN T130-1.2C; Heating element with Ø1.2mm beveled and straight tip

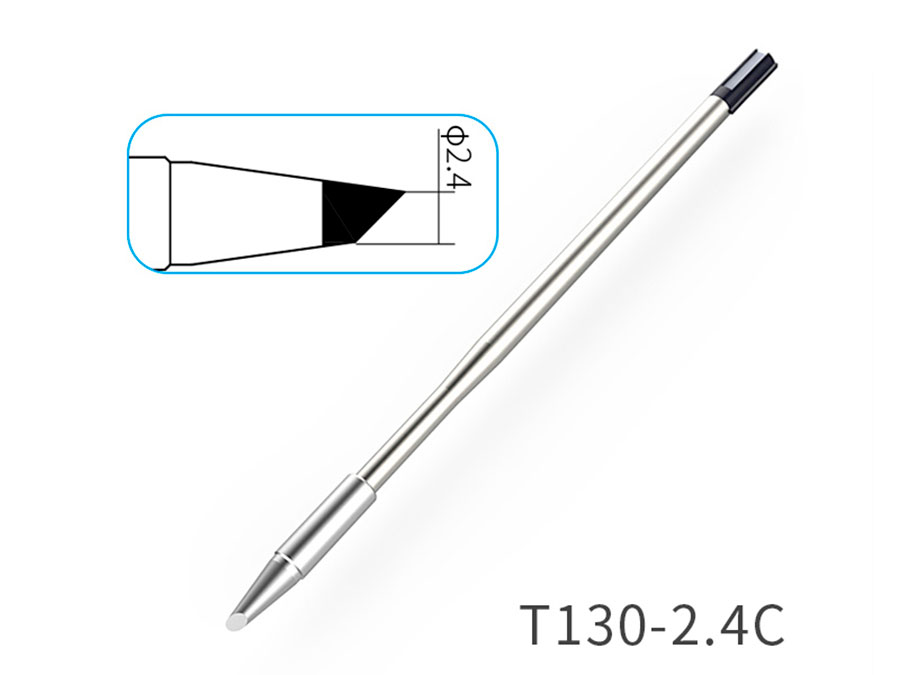

HRJF884: ATTEN T130-2.4C; Heating element with Ø2.4mm beveled and straight tip

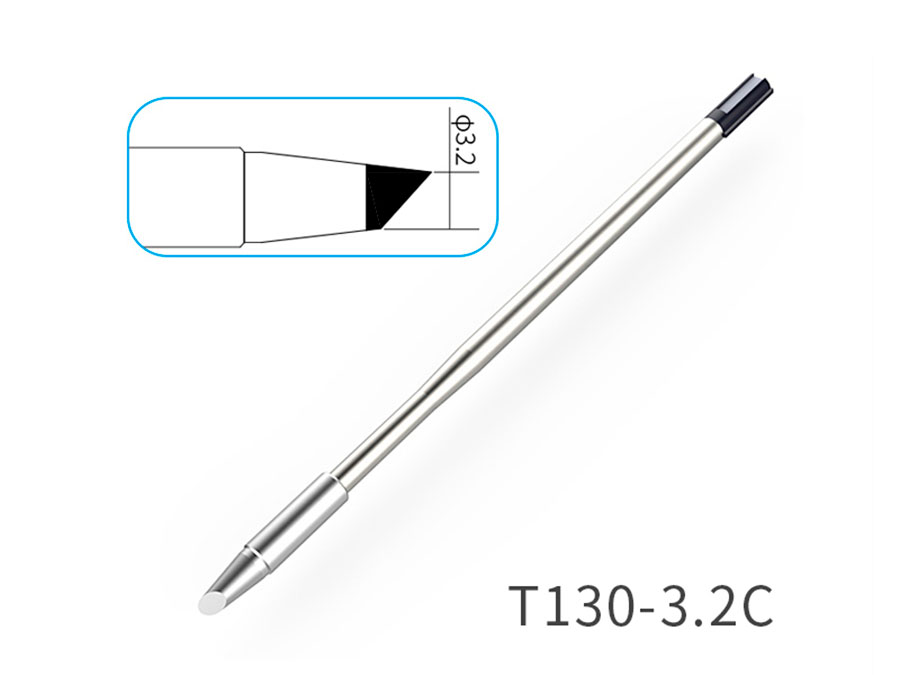

HRJF886: ATTEN T130-3.2C; Heating element with Ø3.2mm beveled and straight tip

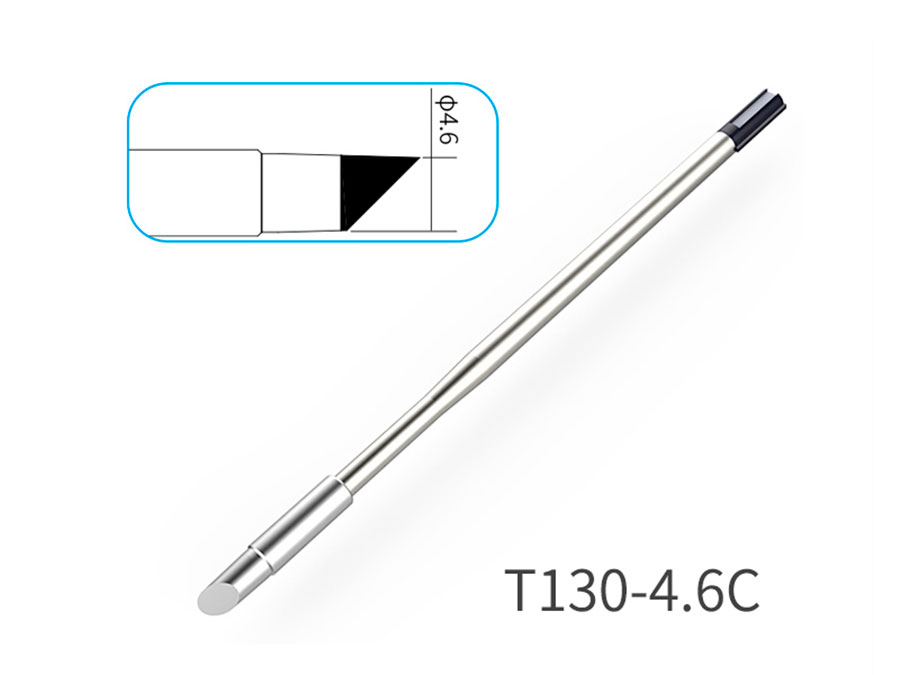

HRJF888: ATTEN T130-4.6C; Heating element with Ø4.6mm beveled and straight tip
HRJF890: ATTEN T130-C; Heating element with Ø1.0 mm beveled and straight tip
HRJF892: ATTEN T130-1.6D; Heating element with Ø1.6 mm flat and straight tip
HRJF894: ATTEN T130-2.4D; Heating element with Ø2.4 mm flat and straight tip
HRJF896: ATTEN T130-3.2D; Heating element with Ø3.2 mm flat and straight tip
HRJF898: ATTEN T130-4.6D; Heating element with 4.6 mm flat and straight tip
Maximum consumption: 900W.

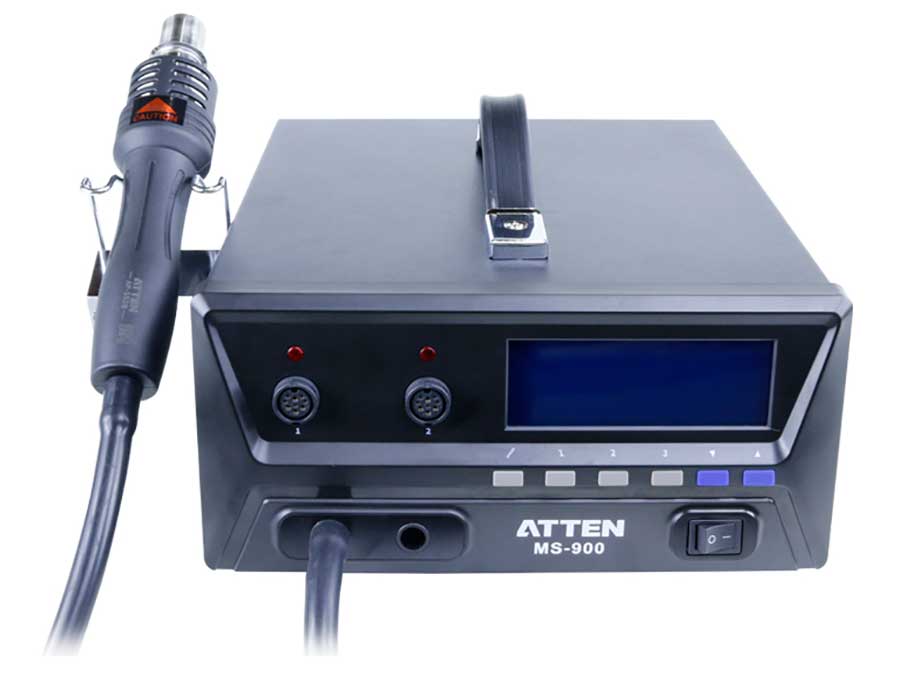

Devices:
AP-552B Hot Air Gun

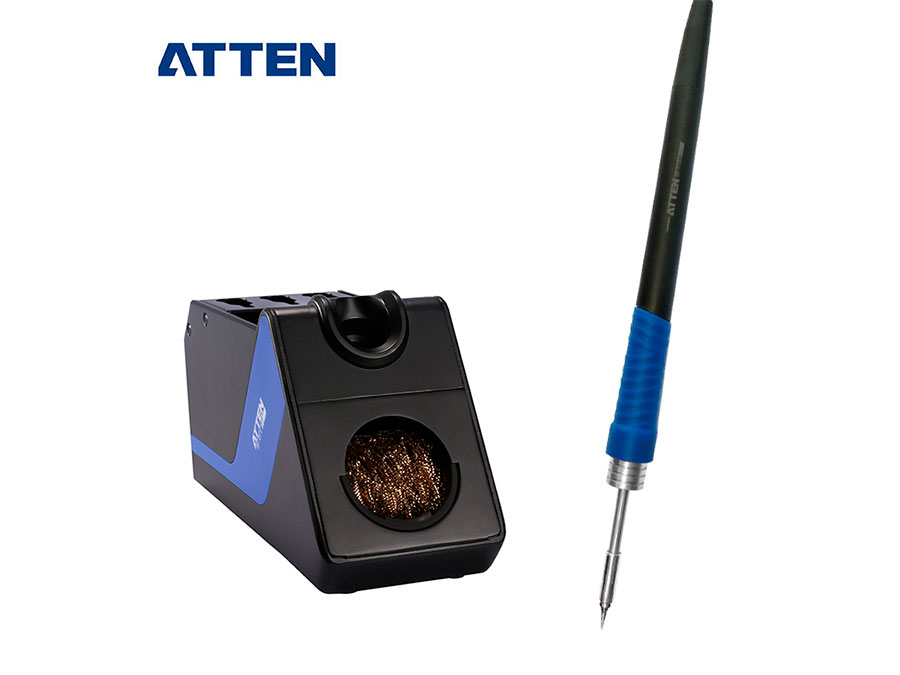

GT-Y130 Electric Soldering Iron
GT-X150 Desoldering Gun
GT-N100 Electric Tweezers
Temperature Range: 150-500℃/302 -932℉
Stand-by temperature: 200ºC/300ºC (depending on device)
Stand-by time: 1..120 minutes
Hot air flow: 23L/min(Max) 5L/min (Min)
Noise: <52dB(A)
Calibration temperature range: ±50℃/±90℉
Lock setting: available
Temperature stability:
AP-552B hot air gun: ±5 ℃
Electric soldering iron GT-Y130: ±2℃
Desoldering iron GT-X150: ±2℃
Electric tweezers GT-N100: ±2℃
Tip to ground resistance: <2Ω
Potential tip to ground: <2mV
Working conditions:
Temperature: 0 to 40°C
Relative humidity: <80%
Storage conditions:
Temperature: -20 to 80°C
Relative humidity: <80%
