Identification

EE Code IND1057

Brand

Chauvin Arnoux

Model C.A 6532

Manufacturer code P01140832

EAN13

Features

Advantages

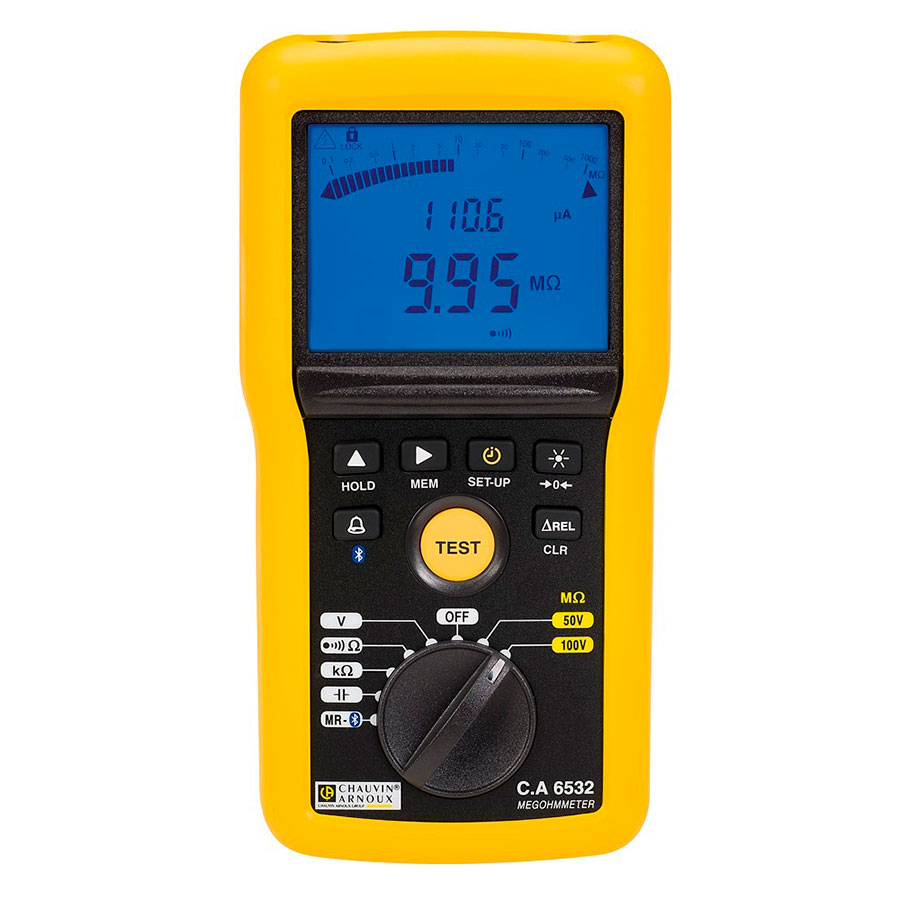

Telecom insulation tester with 50-100 V test voltages and continuity communication.
Measurement capacity up to 20 GΩ with insulation testing at 50-100 V.
Measures continuity, voltage, frequency, and capacitance.
Distance calculation based on capacitance (Distance = f(C)).
Integrated memory and communication functions.

Ergonomics and Design:

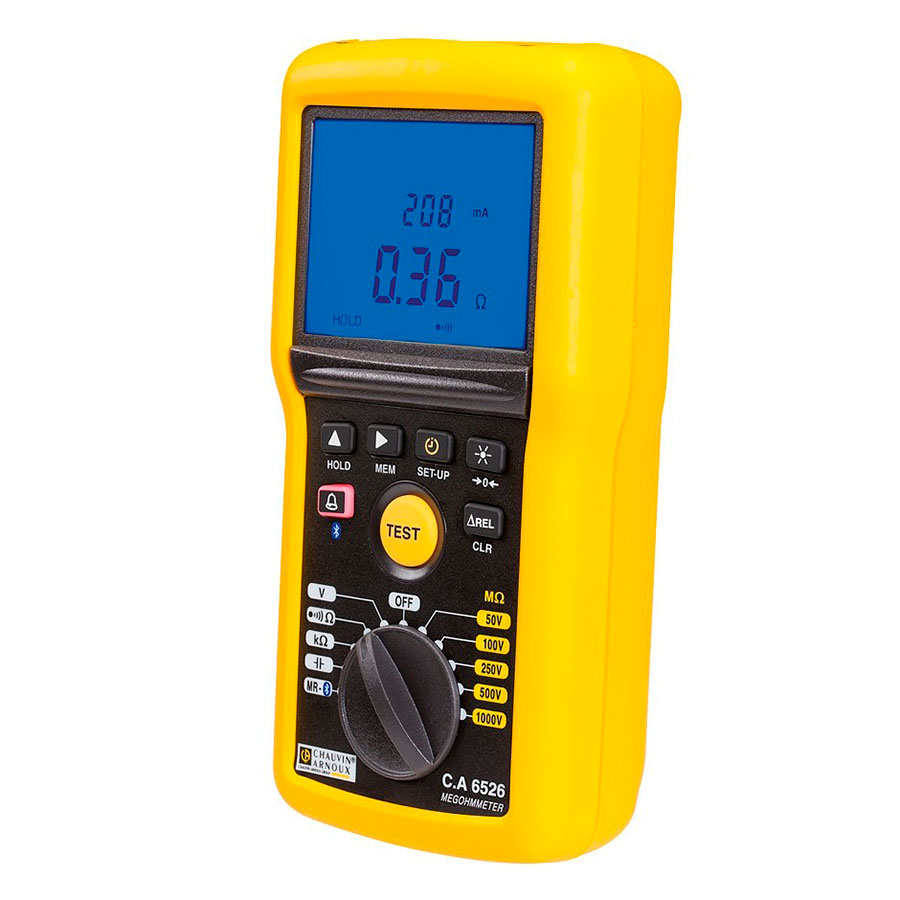

The C.A 652x and C.A 653x insulation testers combine a compact, lightweight design with optimized ergonomics, offering comfort and ease of use for the operator.

Sturdy casing with 600 V - CAT IV safety rating and IP54/IK04 protection, ensuring maximum safety in all applications. The TEST button is easily accessible, even when wearing insulating gloves.
Magnetic support that allows the device to be attached to metal surfaces, freeing the user's hands for measurements and result reading.
Large backlit screen with dual digital display and analog bar, simultaneously showing the measured value, test voltage, current, and timer in real-time.
Remote control with an integrated flashlight, making it easy to identify measurement points in dimly lit environments.

Advanced Insulation Control:

This range offers a wide selection of test voltages, from 10 V to 1 kV, with insulation measurement capabilities up to 200 GΩ. It also complies with IEC61557 standards up to 2 GΩ. Advanced modes include manual operation, lock mode, timed tests, and PI and DAR ratio calculations.

Enhanced Continuity Control:

The continuity testing function, compliant with IEC61557 standards, operates with a 200 mA current. Some models offer a 20 mA option, ensuring greater energy efficiency and prolonging battery life. Additionally, this function features active protection against the presence of voltage, requiring no fuse.

Adaptability and Customization:

The C.A 652X and C.A 653x series allows for customizable alarm thresholds or the selection of predefined ones. The ΔREL function enables the display of variations relative to a reference measurement, both in absolute value and percentage.

Other Key Features:

These devices include digital multimeter (DMM) functions, capable of measuring voltages up to 700 V, frequencies up to 800 Hz, resistances up to 999 kΩ, and capacitances up to 10 µF.

Ease of Use and Connectivity:

Measurement analysis is simplified with the ability to store up to 300 measurements within the device. Models with Bluetooth® increase this capacity to 1,300 records, and the Megohmmeter Transfer (MEG) software, included with communicating versions, allows remote test initiation, real-time graphical visualization, and data transfer to a PC. Optionally, the DataView® software generates custom reports, including operator and site information.
