Great value for the price
Available

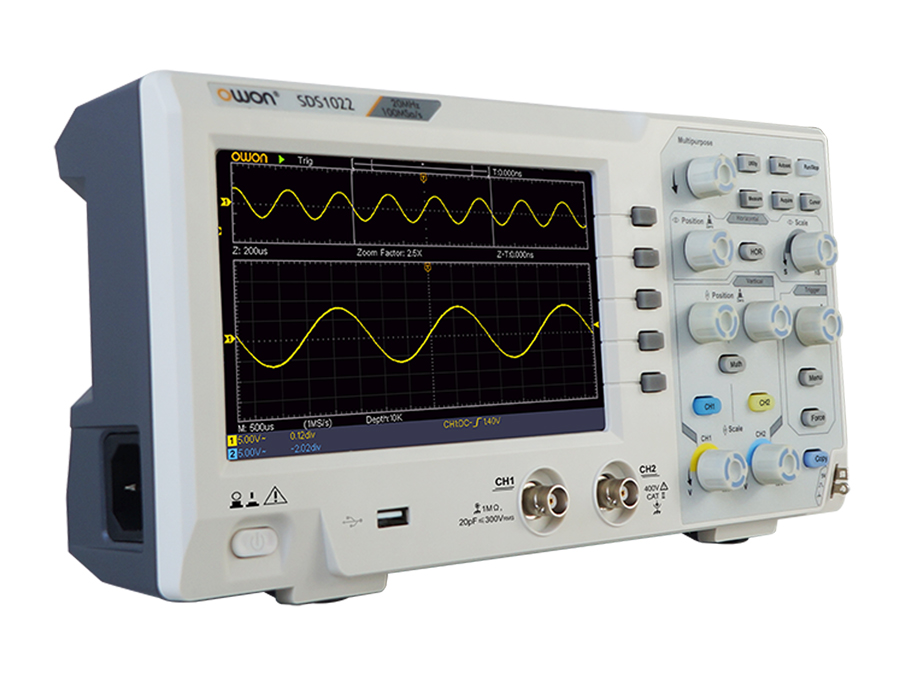

The SDS1022 Digital Oscilloscope offers reliable measurement technology at a very good price.

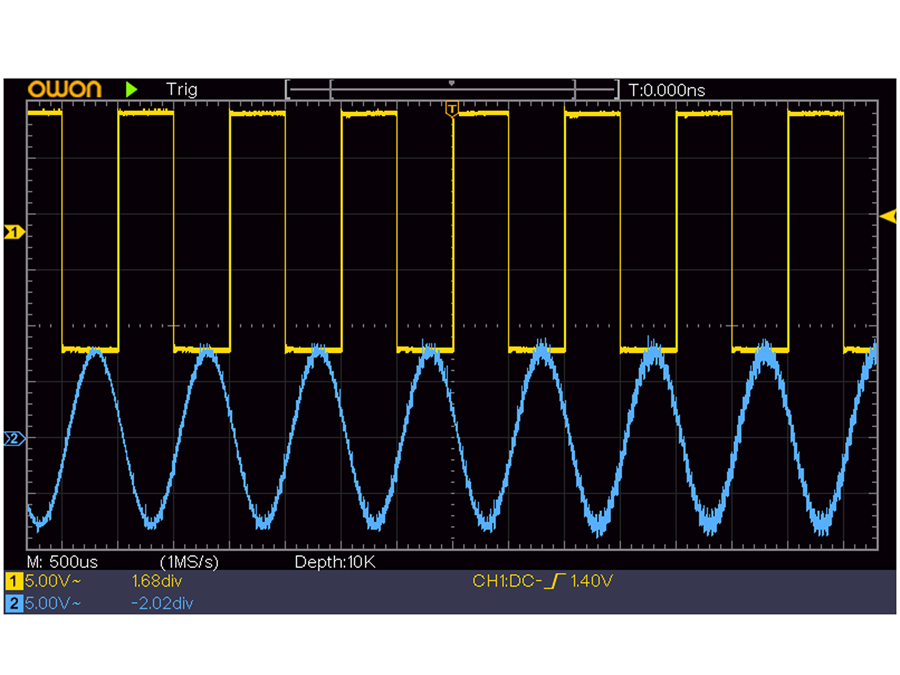

7" TFT LCD color panel with a resolution of 800 × 480 allows for excellent wave readability.
The SDS1022 offers 20 MHz of bandwidth, a frequency of 100 MSA /s sampling in Dual Channel and 10 K memory depth
Supports SCPI and LabVIEW communications protocol.
Includes USB port for PC connection and as host to connect a USB stick
Supplied including 2 probes, one USB cable, PC software, a power adapter and a user manual
-Oscilloscope:
Bandwidth: 20MHz
Sampling: 100MS / s
Screen: 7 '' color TFT display 800x480 pixels
Memory: 10 K
Maximum voltage: 400V (peak)
Time base: 5 nS / Div at 100 s / Div
Voltage difference and time difference between cursors
Self-measurements: Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A? B Rising Edge, Delay A? B Falling Edge, + Width, -Width, + Duty, -Duty
Interfaces: PC USB connection, USB host for pen drives
Dimensions: 301 x 152 x 70 mm
Weight: 1.10 kg
