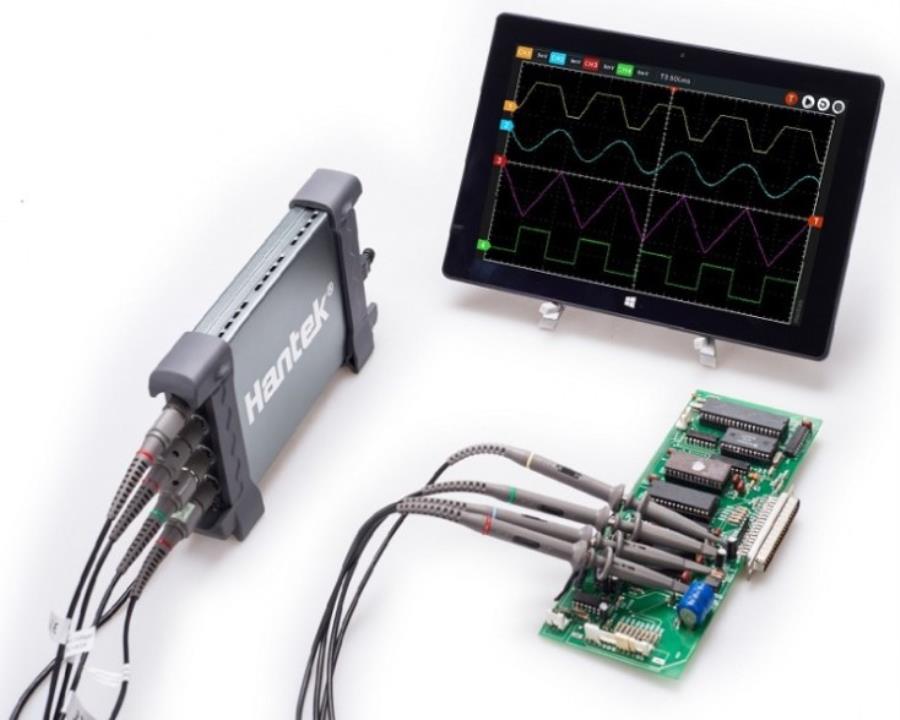

Hantek 6074BC - 4-channel oscilloscope 70 Mhz 1GSa/s - USB

INI1542

Sold out. We can let you know when it is available.

Quantity

VAT NOT INCLUDED

VAT INCLUDED

208.50 €

252.28 €

Identification

EE Code INI1542

Brand

Hantek

Model 6074BC

Manufacturer code

EAN13

Features

4 independent analog channels oscilloscope with 1GSa/s real-time sampling rate and 2mV-10V/Division input sensitivity

High performance at a very competitive price, Pass/Fail test, advanced trigger functions, dynamic cursor tracking, waveform recording and playback.

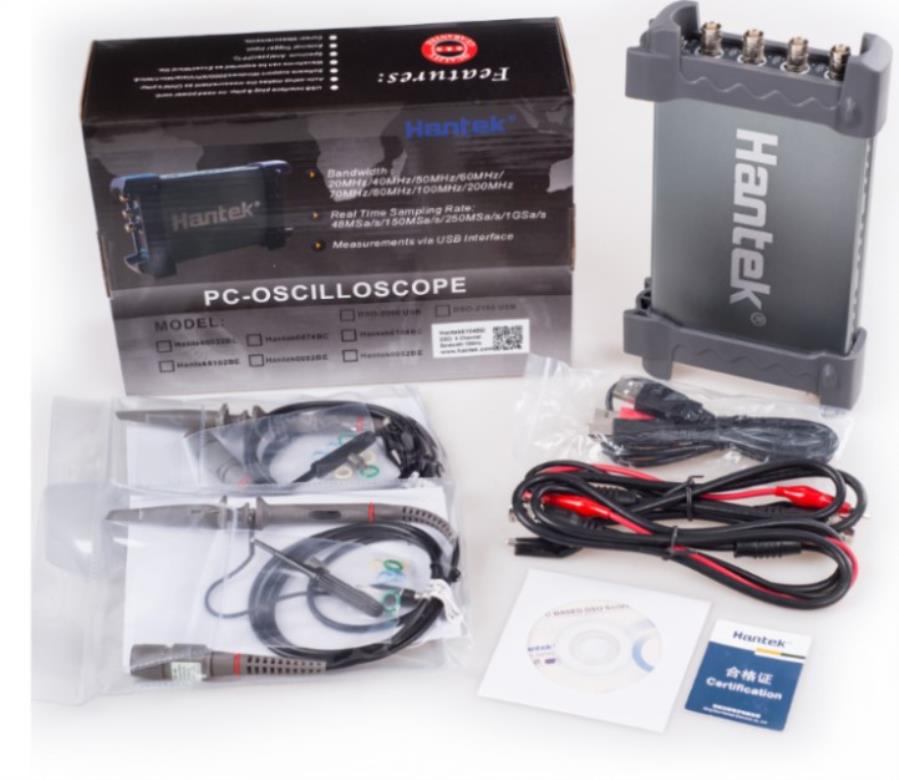

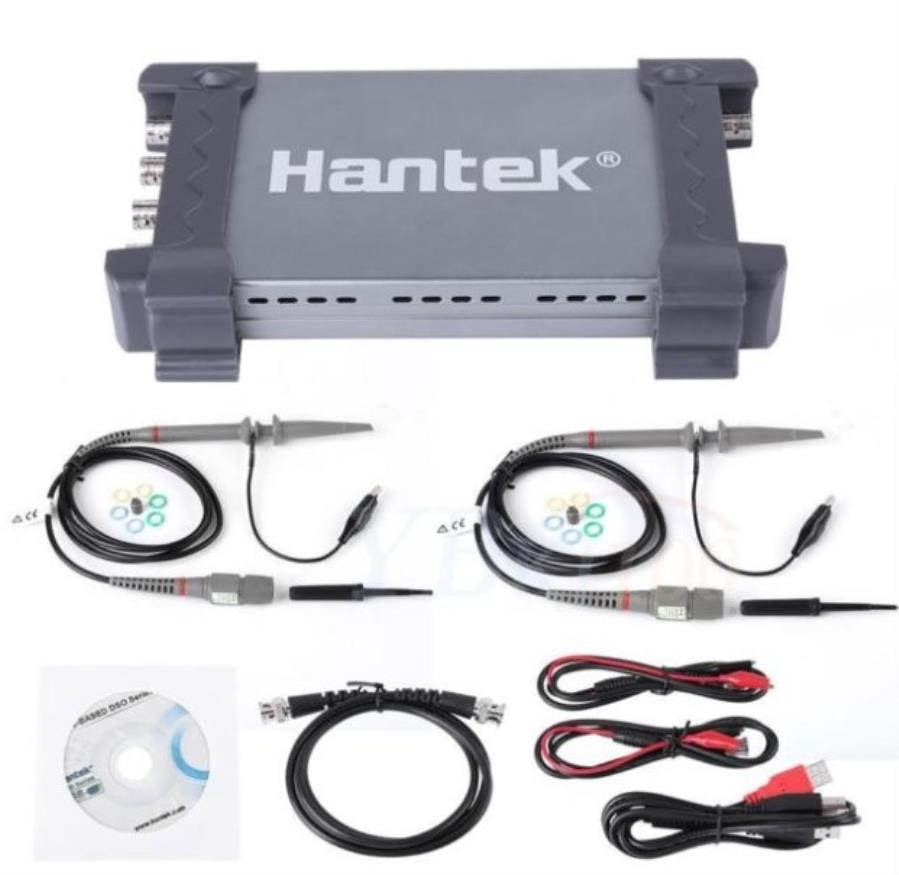

This item includes:

1 Hantek 6074BC USB digital oscilloscope.
2 passive oscilloscope probes with BNC.
2 cables with BNC and alligator clips.
1 USB cable.
1 CD including an English or Spanish instruction manual

Specifications

Bandwidth: 70 MHz.
Channels: 4.
Sampling rate: 1 GSa/s.
Memory depth: 64 K.
Time base accuracy: ± 50 ppm.
Time base range: 2 ns/div - 1000 s/div (sequences 1-2-4).
Input impedance: 1 MΩ 25 pF.
Input sensitivity: 2 mV/div ~ 10 V/div.
Vertical resolution: 8 bit.
Vertical offset range:
- 2 mV ~ 10 V/div, probe x1;
- 20 mV ~ 100 V/div, probe x10;
- 200 mV ~ 1000 V/div, probe x100;
- 2 V ~ 10000 V/div, probe x1000.
DC gain accuracy: ±3%.
Bandwidth: 20MHz.
Trigger mode: Edge, Pulse, Video, Alternate.
Trigger source: CH1, CH2, CH3, CH4.
Waveform signal processing: Addition, Subtraction, Multiplication, Division, FFT, Invert.
Measurements: Cross, Trace, Horizontal, Vertical.
Automatic measurement: Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot.
Functions: Overshoot, Frequency, Time, Rise time, Fall time, Positive width, Negative width, Duty cycle.
Accessories included: 2 passive probes and 2 cables with alligator clips.

Products that could interest you

IN11060

Insulated Oscilloscope Probe 60 Mhz - x1-x10

Add to cart >

Price w/ VAT

12.60 €

Quantity

Price w/o VAT

Price w/ VAT

10.41 €

12.60 €

IN11062

Oscilloscope Probe - 100 Mhz - x1-x10

Add to cart >

Price w/ VAT

15.76 €

Quantity

Price w/o VAT

Price w/ VAT

13.02 €

15.76 €

> 3

11.72 €

14.18 €

> 12

10.42 €

12.61 €

> 25

9.12 €

11.03 €

IN11051

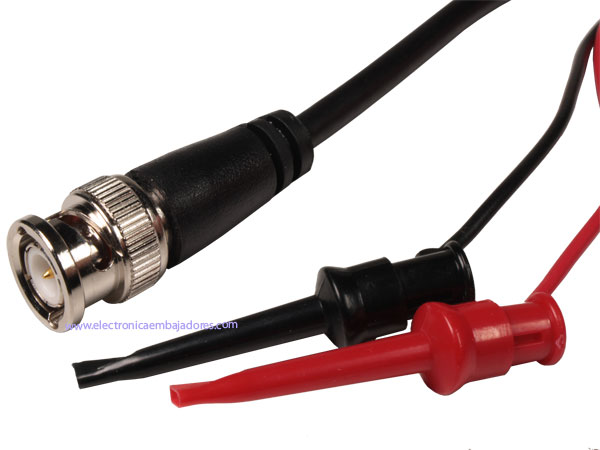

Low-Cost BNC to Dual Clip Oscilloscope Test Probe
