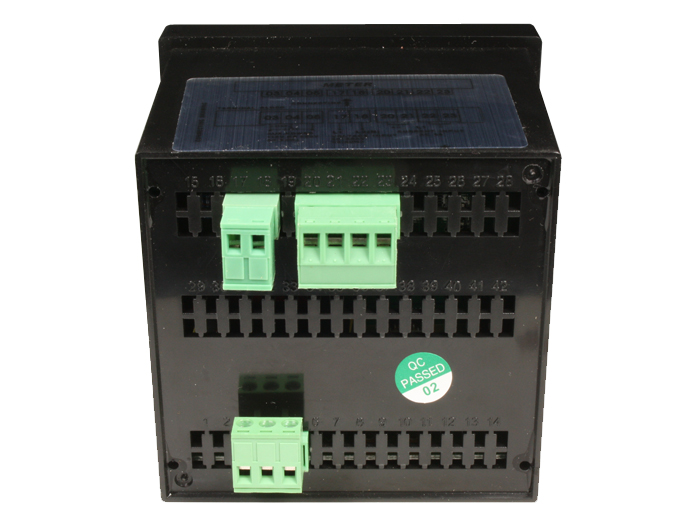

This SWITCHTRONIX digital panel instrument is a multifunctional device designed to measure and simultaneously display voltage, current, and power in single-phase electrical systems. This panel wattmeter, also known as a wattmeter for electrical panels, is essential for monitoring and controlling electrical parameters in various applications.

Combined Functions: Operates as a voltmeter, ammeter, and wattmeter, providing a comprehensive real-time view of electrical status.
Simultaneous Measurement: Its 4-digit LED display shows all three parameters concurrently, facilitating efficient monitoring.
Wide Measurement Range: Directly measures currents up to 5A. For higher currents, it is compatible with current transformers, allowing measurements up to 8000A AC.
Adjustable Configuration: Includes a button to set the transformation ratio according to the employed current transformer, ensuring accuracy across various installations.

Compatible Transformation Ratios:

This device supports various transformation ratios to accommodate different measurement needs. Valid ratios include: 10A/5A, 15A/5A, 20A/5A, 25A/5A, 30A/5A, 40A/5A, 50A/5A, 60A/5A, 70A/5A, 75A/5A, 80A/5A, 100A/5A, 120A/5A, 150A/5A, 160A/5A, 200A/5A, 250A/5A, 300A/5A, 400A/5A, 500A/5A, 600A/5A, 700A/5A, 750A/5A, 800A/5A, 1000A/5A, 1200A/5A, 1500A/5A, 1600A/5A, 2000A/5A, 2500A/5A, 3000A/5A, 4000A/5A, 5000A/5A, 6000A/5A, 7000A/5A, 7500A/5A, and 8000A/5A.

Applications:

This instrument is ideal for integration into electrical panels, control panels, and power distribution systems. It is particularly useful in industrial, commercial, and residential environments where precise monitoring of electrical parameters is crucial to ensure energy efficiency and operational safety.

For measuring currents exceeding 5A, it is recommended to use compatible current transformers, such as the SWITCHTRONIX 100A/5A Current Transformer, which extends the device's measurement capacity.

In summary, the SWITCHTRONIX digital panel instrument offers a versatile and accurate solution for comprehensive monitoring of electrical systems, facilitating efficient energy management and contributing to the safety and optimisation of electrical installations.

Specifications

Voltage Range: 50V to 600V AC
Current Range: Up to 5A AC directly; up to 8000A AC with an appropriate current transformer
Power Range: Up to 9999 kW in single-phase systems
Power Supply: 110V/220V AC, 50/60 Hz
Accuracy: ±0.5% ±2 digits
Dielectric Strength: AC 2KV/1min
Operating Temperature: -10ºC to 50ºC
Display: 4-digit LED, maximum reading of 9999
Dimensions: 96 x 96 x 94 mm; panel depth: 81 mm (including connectors)
