SWITCHTRONIX - Ø19 mm 1NO + 1NC Mushroom Stop Button - Ø24 mm Mushroom Emergency Button - Twist to Release

Name: SWITCHTRONIX - Ø19 mm 1NO + 1NC Mushroom Stop Button - Ø24 mm Mushroom Emergency Button - Twist to Release
Brand: SWITCHTRONIX
SKU: IT4A833
Price: 15.26 EUR
Availability: InStock

IT4A833

Available

Stock

Quantity

VAT NOT INCLUDED

VAT INCLUDED

12.61 €

15.26 €

Identification

EE Code IT4A833

Brand

swichtronix

Model

Manufacturer code

EAN13

Features

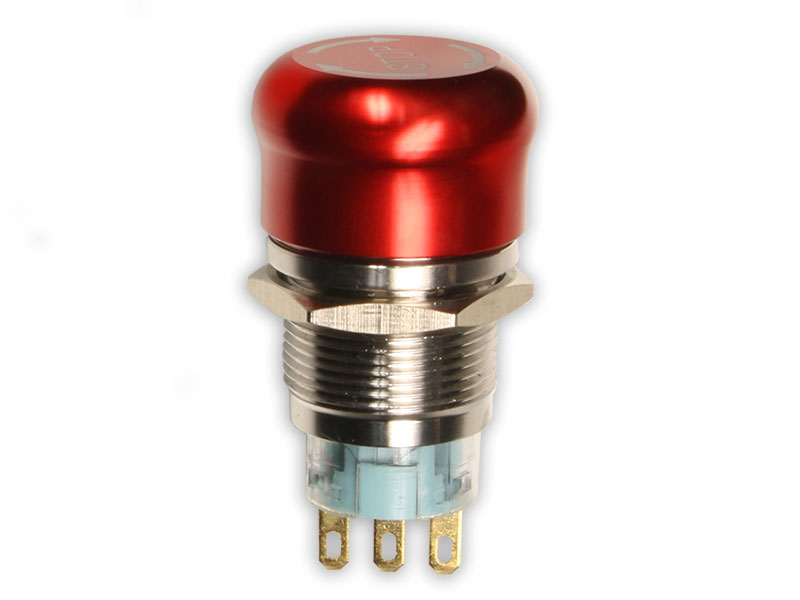

Emergency button 24mm diameter for 16mm hole with stainless steel body with changeover contact

Releases by turning the button

Specifications

Rated current: 3A / 250V
Contact type: 1N0 + 1 NC
Mechanical life: >1,000,000 times
Electrical life: > 200,000 times
Contact resistance: < 50 mΩ
Contact material: Silver
Working temperature: -20ºC..+55ºC
Working diameter: 16 mm
Connection type: Solderable terminals or 2.8 mm faston connector
Degree of protection: IP65
