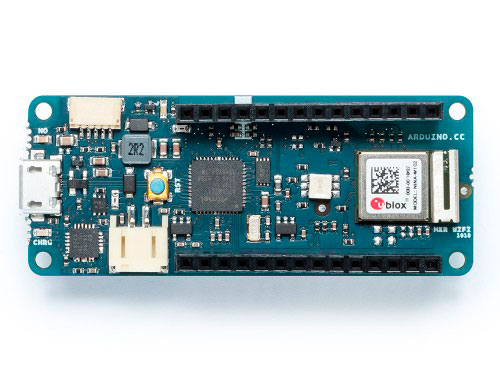

The MKR WIFI 1010 is a significant improvement of the MKR 1000 WIFI. It is equipped with an ESP32 module made by U-BLOX. This board aims to accelerate and simplify the creation of prototype WiFi-based IoT applications thanks to the flexibility of the ESP32 module and its low power consumption.
The board consists of three main blocks:
SAMD21 Cortex- Low-power M0 + MCU 32-bit
Wi-Fi IEEE® 802.11 b / g / n U-BLOX 2.4GHz NINA-W10 series low power
ECC508 Crypto Authentication
The MKR WIFI 1010 It has a 32-bit computing power, the usual rich set of low-power I / O and Wi-Fi interfaces with a Cryptochip for secure communication using SHA-256 encryption. In addition, it offers the user-friendliness of the Arduino (IDE) software for code development and programming
Its USB port can be used to supply power (5 V) to the board. It has a Li-Po charging circuit that allows the Arduino MKR WIFI 1010 to run on battery power or with an external 5-volt source, charging the Li-Po battery while running on external power. The change from one source to another is done automatically
Microcontroller SAMD21 Cortex-M0 + 32 bit MCU of low power consumption
Power supply of the board (USB / VIN): 5V
Compatible battery: Li-Po, 3.7 V, minimum 700mAh
Circuit operating voltage : 3.3V
Number of digital I / O: 8
PWM: 12 (0, 1, 2, 3, 4, 5, 6, 7, 8, 10, A3 - or 18 -, A4-or 19)
UART: 1
SPI: 1
I2C: 1
I2S: 1
Connectivity: wifi
Analog inputs: 7 (ADC 8/10/12 bit)
Analog outputs: 1 (DAC 10 bit )
External interruptions: 8 (0, 1, 4, 5, 6, 7, 8, A1 -o 16-, A2- or 17)
DC Current per I / O pin: 7 mA
Flash memory : 256 KB
SRAM: 32 KB
EEPROM: No
Clock speed: 32,768 kHz (RTC), 48 MHz
LED_BUILTIN 6
Full-Speed ??USB Device and integrated host: included
Length: 61.5 mm
Width: 25 mm
Weight: 32 g
