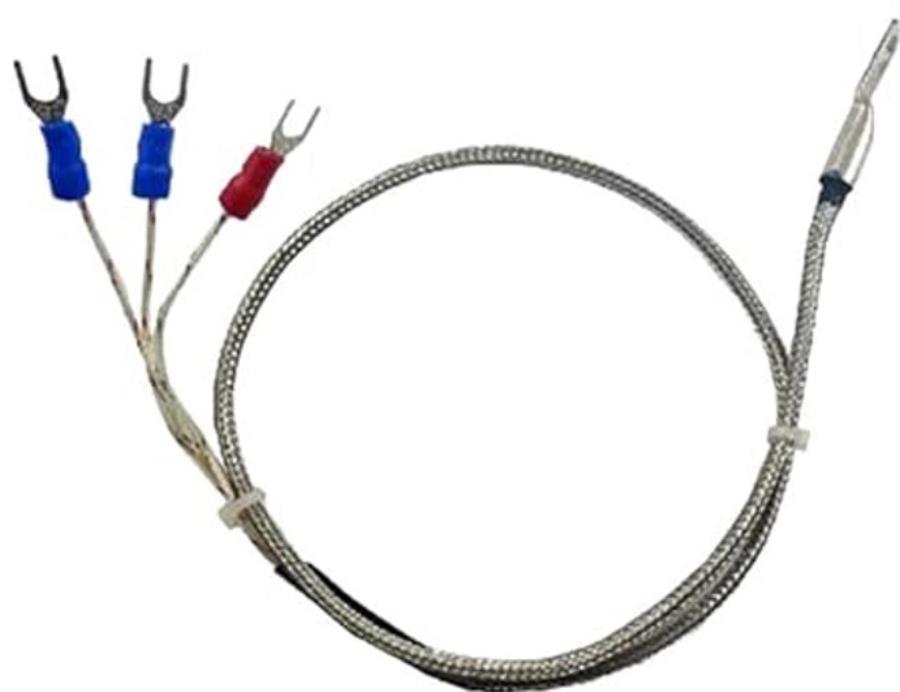

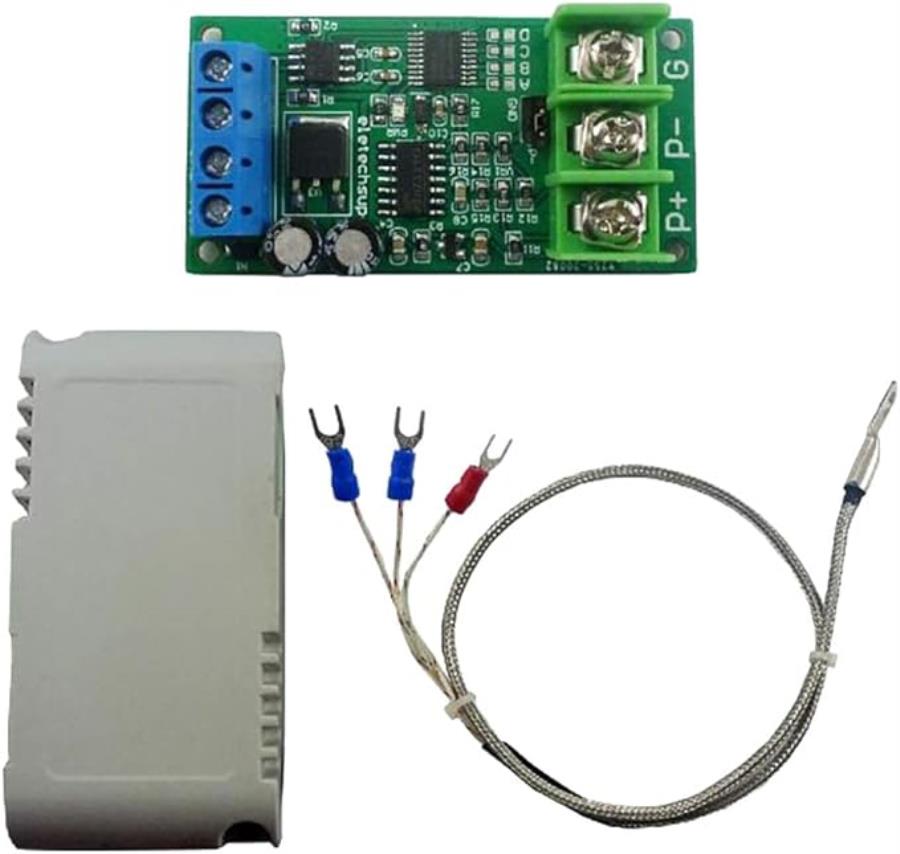

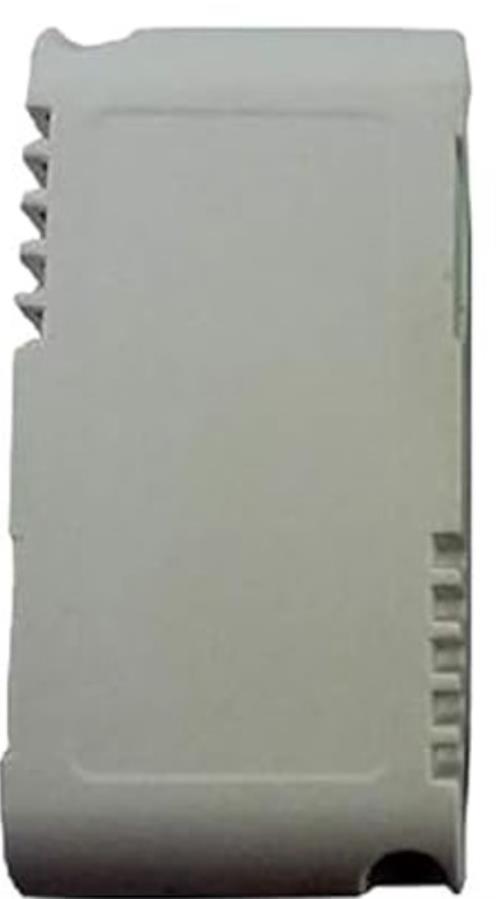

PT22B01 - Temperature Converter to RS485 Modbus Rtu + PT100 RTD Probe + Box
LCINP01
Available
Stock
Quantity
2
VAT NOT INCLUDED
VAT INCLUDED
21.00 €
25.41 €
Identification
EE Code
LCINP01
Brand
Model
PT22B01
Manufacturer code
EAN13
Features
This module is a temperature converter that uses a PT100 probe to measure temperatures from -40°C to +500°C.
It can be used in cascade by installing up to 247 modules. If this configuration is used, RS485 repeaters for 16 modules or cascaded modules must be used.
New version
New features (compared to the previous version PTA9B01):
Two check digits can be configured: none, even parity, odd parity
Option to include Fahrenheit temperature
Add 16 (0X10) codes RES hardware reset function. The module will restore factory settings and automatically reboot after a 5-second short circuit of the RES port.
