Electronic Modules
Laser Modules
LH 650-16-3(12x38)-PL - 16mW 650nm Class 2 Laser Module - Red line
LH 650-16-3(12x38)-PL - 16mW 650nm Class 2 Laser Module - Red line
LCLA16RL
Previous
Next
Sold out. We can let you know when it is available.
Quantity
VAT NOT INCLUDED
VAT INCLUDED
166.00 €
200.86 €
Identification
EE Code
LCLA16RL
Brand
Model
LH 650-16-3(12x38)-PL
Manufacturer code
LH 650-16-3(12x38)-PL
EAN13
4260129041063
Features
16mW 650nm Class 2 Red Line Laser Module
Specifications
Beam Shape: Line
Wavelength: 650 nm (red)
Optical Power: 16 mW
Laser Class: 2
Divergence: 1 mrad
Fan Angle: 90°
Line Width: <2 mm at 3 m
Operating Distance: 5 meters
Optics: Glass Lens
Laser Technology: Diode
Protective Lens: Yes

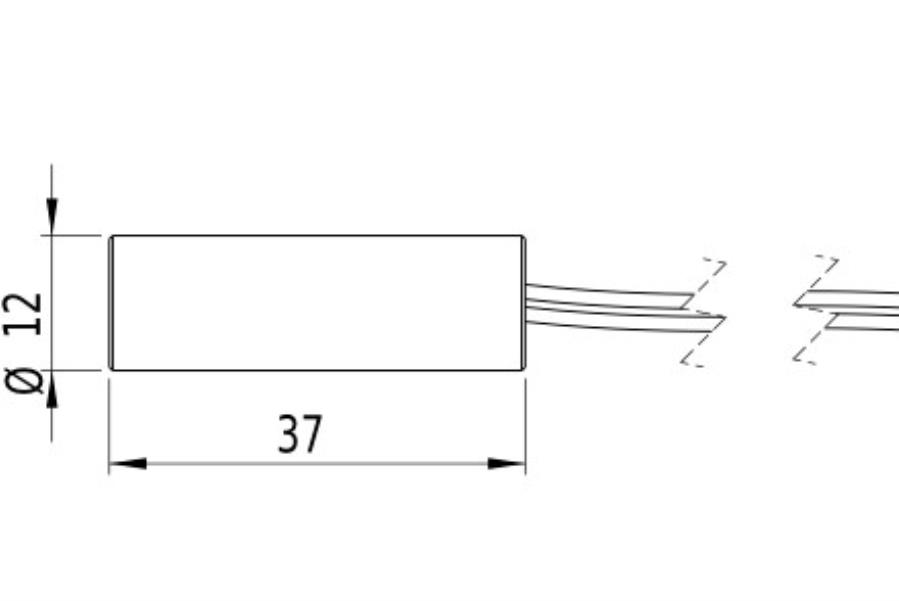

Size: Ø12mm 38mm
Material: aluminum
Cable length: 100mm
Wire type: 26 AWG, 0.14 mm²
Focus: fixed (3000 mm)

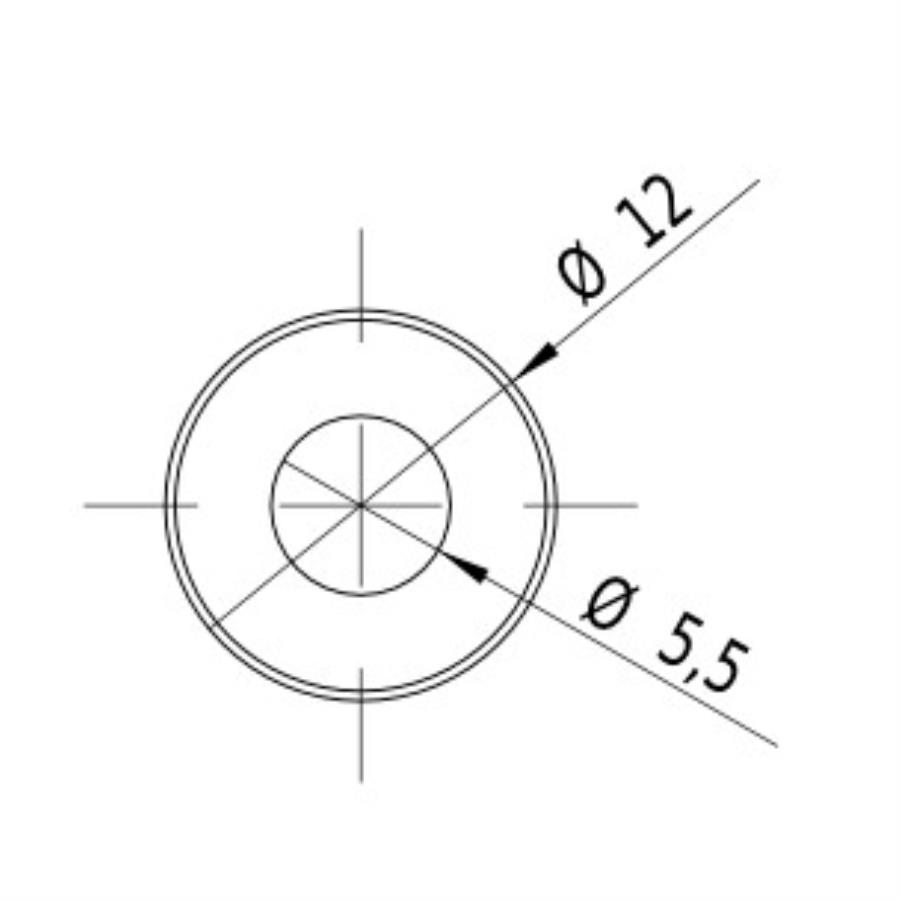

Exit aperture: 5.5 mm
Life: >5000 hours
Operating voltage: 2.7 .. 3.3 Vdc
Operating current: 60 mA
Operating temperature: -20°C - 50°C
Storage temperature: -40°C - 80°C
Weight: 18 grams
