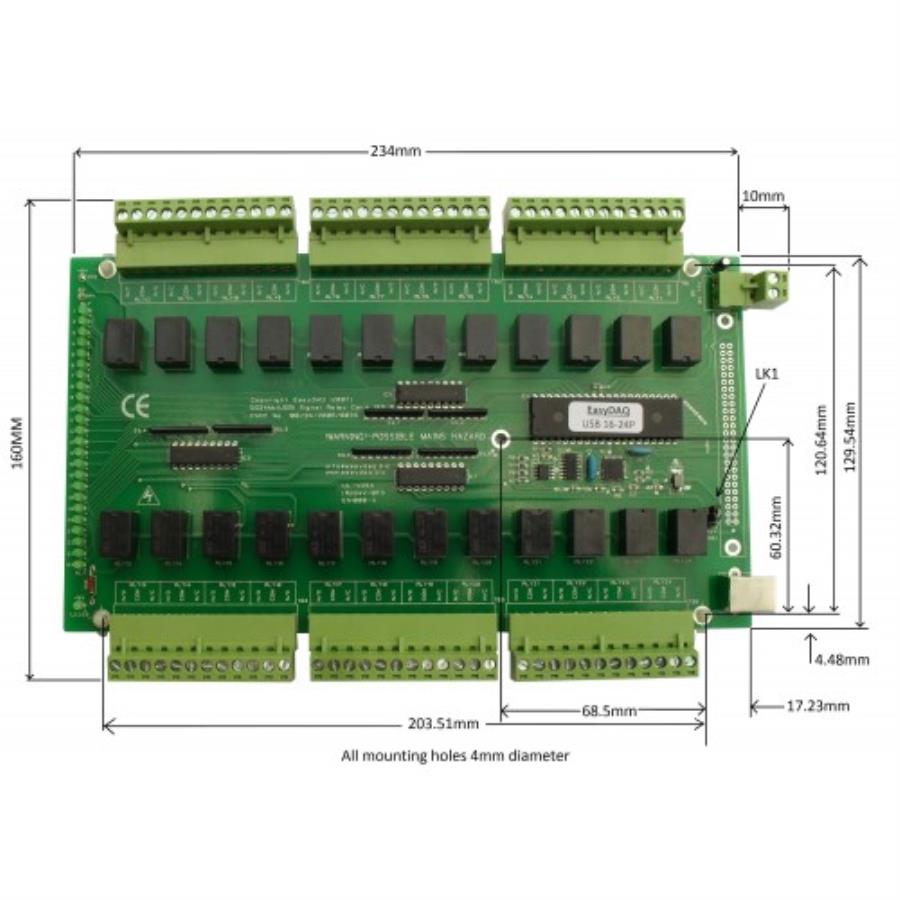

It is a general purpose, USB powered 24 channel relay board. Can be commanded via simple ASCII character commands - example programs available for download in several programming languages. PC, MAC & Linux compatible.
This unit contains 30VDC, 1Amp relays, contacts are silver alloy with a silver gold overlay. Quotes can be provided for gold contact relays. Suitable for a wide range of control or signal switching purposes, the PCB tracking is designed to handle 240VAC @ 10amps.
Access to all relay contacts via two part (male/female) side entry, screw terminal blocks mounted along each edge of the card. The cards are designed to be stacked, with the side entry connectors allowing for rapid assembly & dismantling. Power & channel status indicators are visible along one end of the card.
Supplied with nylon feet in each corner which will take self tapping screws or allow the card to be sat on a surface.
The board can be powered from the USB port, (maximum of 8 relays activated at any one time) or the relays can be isolated from the USB +5V (via a jumper link) and the relays powered from an external +5V supply, in which case all relays can be activated.
Control Interface | USB |
Relay coil voltage | 5V |
Relay Channels | 24 |
Relay contact current | 1A |
Relay Type | SIGNAL |
Opto-isolated | YES |
