Available
8 10/100 / 1000Mbps RJ45 ports with automatic speed detection, support for automatic MDI / MDIX
Green Ethernet technology saves up to 82% of energy
IEEE 802.3x flow control provides reliable data transfer
Metal housing, designed to be used as a desktop or wall mount
802.1p / DSCP QoS and IGMP Snooping support
Plug and Play, without any additional configuration
Standards and Protocols: IEEE 802.3i / 802.3u / 802.3ab / 802.3x /802.1p
Interface: 8 RJ45 10/100/1000 Mbps ports, Auto Negotiation, Auto MDI / MDIX
Number of Fans: No fan
External Power Supply: External Adapter (Output: 9VDC / 0.6A)
Buffer Size: 1.5Mb
LED Indicator:
System Power
Link, Speed ??and Activity Indicators integrated in each RJ-45 port
Dimensions: 158 x 101 x 25 mm
Maximum Power Consumption: 3.31W (220V / 50Hz)
Max Heat Dissipation: 11.29BTU / h
Packet Forwarding Rate: 11.9Mpps
MAC Address Table: 4k
Packet Buffer Memory: 1.5Mb
Jumbo Frame: 16KB
Advanced Features:
Green Technology, energy saving up to 82%
802.3X Flow Control
802.1p / DSCP QoS
IGMP Snooping
Transfer Method: Storage and Shipping
Certifications: CE, FCC, RoHS
Package Contents:

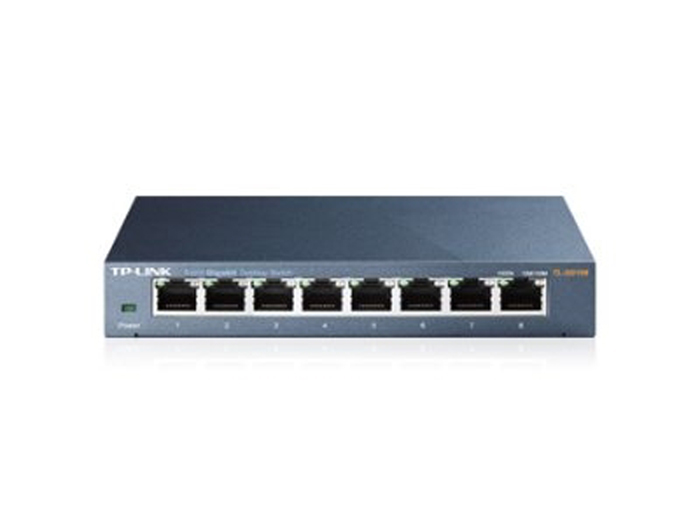

Desktop Switch with 8 Gigabit Ports
Power Adapter e
User Manual
