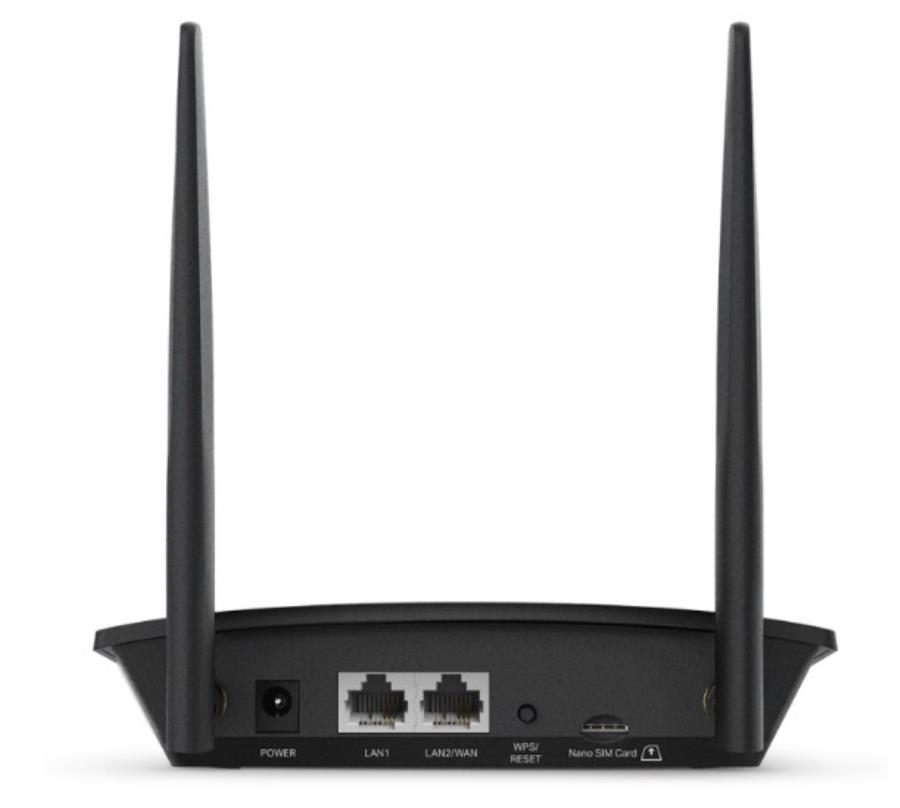

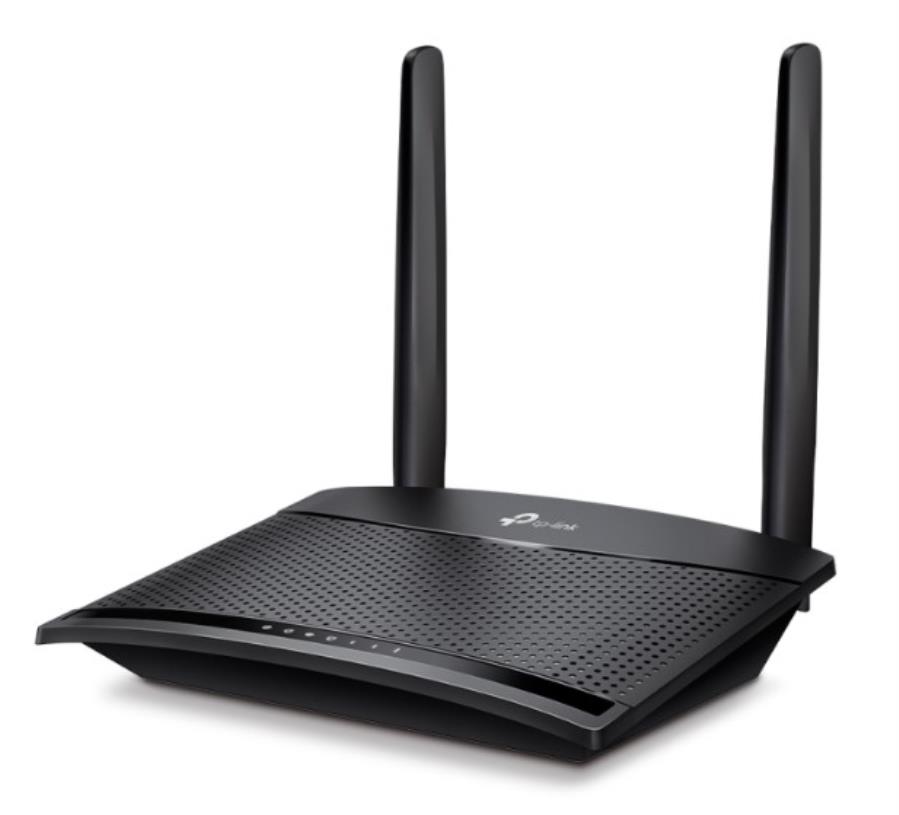

TP-Link TL-MR100 - 4G nanoSIM WIFI router - 2 LAN ports

PC10TPMR100

User manual

User manual

Sold out. We can let you know when it is available.

Quantity

VAT NOT INCLUDED

VAT INCLUDED

59.81 €

72.36 €

Identification

EE Code PC10TPMR100

Brand

TP-Link

Model TL-MR100

Manufacturer code TL-MR100

EAN13 6935364088804

Features

TP-Link MR100 router with 4G LTE single band (2.4 GHz) Wi-Fi 4 (802.11n) connection at 300 Mbit/s

The TP-Link MR100 router is a device capable of connecting to the Internet using a nanoSIM card from your telephone provider (ISP).

It has 2 LAN ports, and the normal functionalities of a wired router. In addition, one of the LAN ports also has the functionality of an ADSL/Cable connection.

You can set the security PIN when inserting the nanoSIM card, which will be stored as part of the configuration.

Specifications

Ports and Interfaces

Ethernet LAN (RJ45) number of ports: 2

Mobile networks

3G: Yes
3G standards: HSPA, UMTS
4G: Yes
4G standard: LTE-TDD & LTE-FDD
Supports 4G bands: 800, 900, 1800, 1900, 2100, 2300, 2500, 2600 MHz
UMTS bands supported: 850, 900, 2100 MHz
Mobile network generation: 4G

Wi-Fi

Single band (2.4 GHz)
Wi-Fi standard: Wi-Fi 4 (802.11n)
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (max.): 300 Mbit/s
Equivalent Isotropic Radiated Power (EIRP): 20 dBmW

WAN Connection

Support 3G/4G USB Modem: Yes
DSL WAN: Yes
Ethernet WAN: Yes
SIM card slot: Yes, nanoSIM.
WAN connection type: RJ-45

Ethernet

LAN speed: 10,100 Mbit/s
LAN port technology: 10/100Base-T(X)
Compatible protocols: IPv4, IPv6.
Forwarding ports: Yes
DHCP (client): Yes
DHCP (server): Yes
Dynamic DNS: Yes

Antennas

Type: External
Connector: N
DC input plug: Yes
< /ul>

Administration

Reset button: Yes
Quality of Service (QoS) support: Yes
Wireless Statistics: Yes
Wi-Fi Multimedia (WMM)/ (WME): Yes
Firewall: Yes
Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK< /li>
DMZ Support: Yes
Guest Access: Yes
IP Address Filter: Yes
MAC Filter: Yes< /li>
Scheduling access to the configuration panel: Yes

Power:

Power adapter included: Yes
Voltage: 9 Vdc
Output current: 0.85 A

Dimensions:

Height: 36 mm
Width : 154 mm
Depth: 114 mm

Environmental conditions

Operating temperature range: 0 - 40 °C
Operating relative humidity range: 10 - 90%
