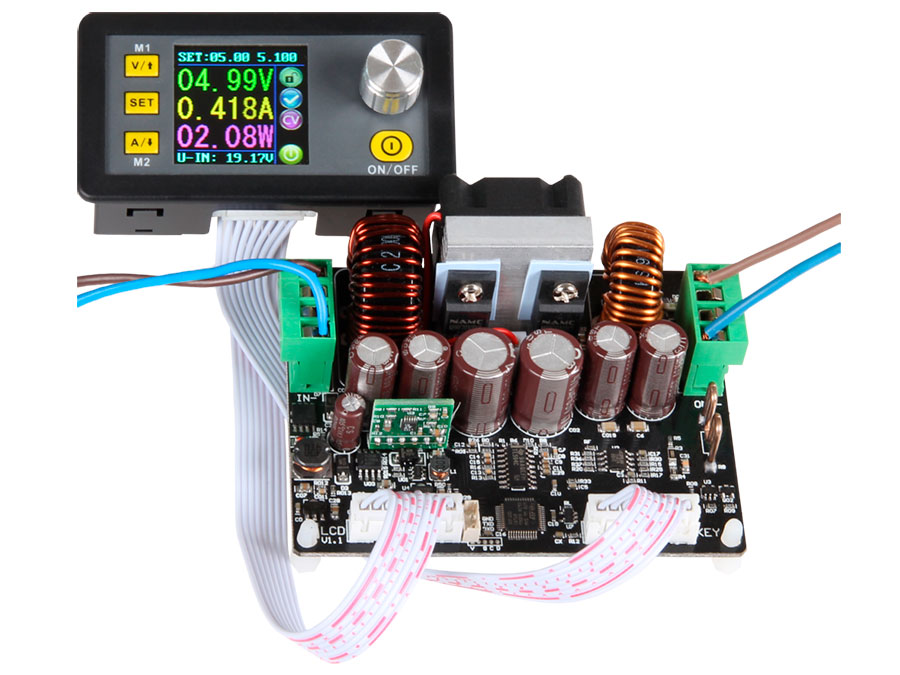

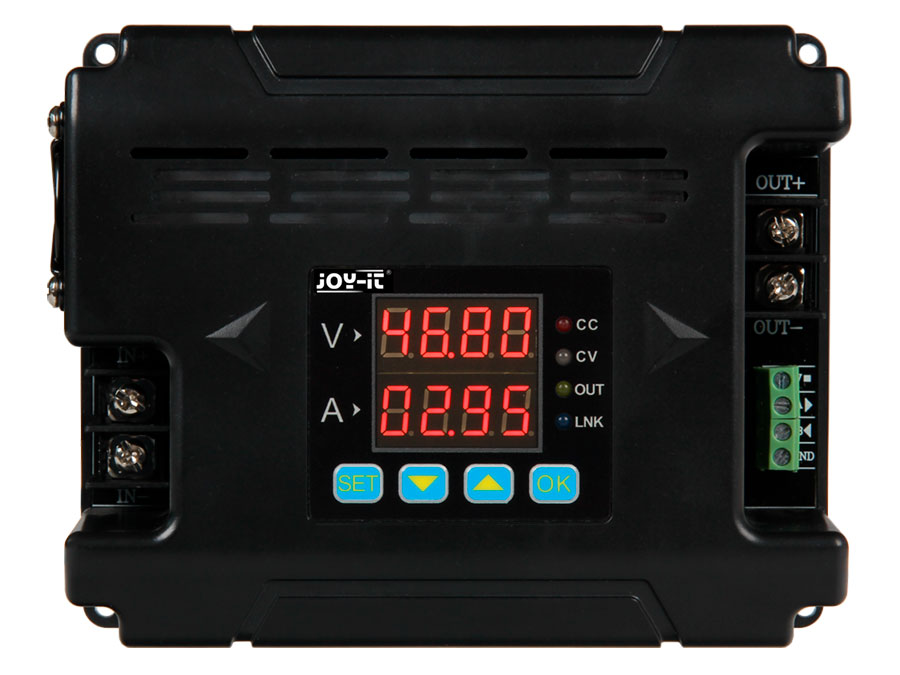

This is a programmable buck power supply which converts voltage and current down. It has both a constant voltage - and a constant current mode. With its RS-485 interface, it is possible to manage any setting comfortably via your PC with a free software. This easy operability and the high accuracy of the current and voltage display make this device stand out. On the device, there are 4 buttons to control it manually, too. The display has got a diagonal of 1,7 Inch (4,3cm).

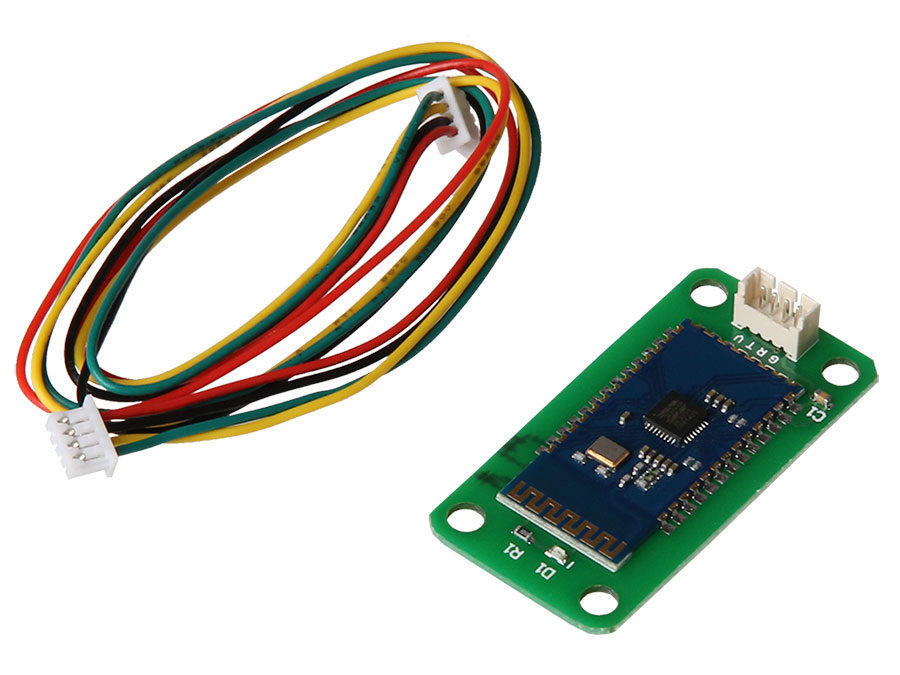

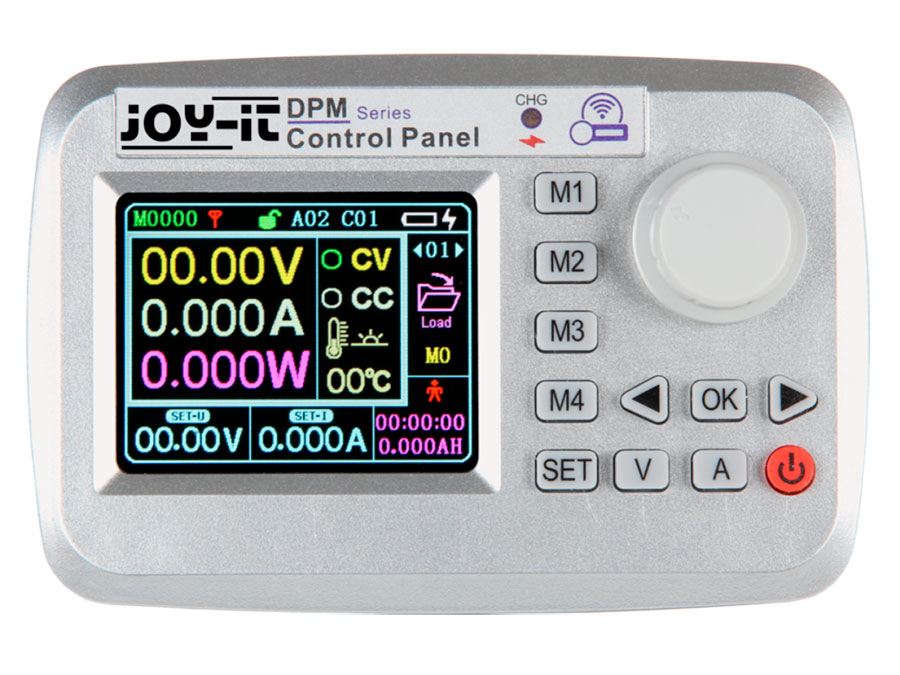

As optional equipment for this power supply, there is a wireless control panel available, which enables telecommanding from a distance of up to 10 meters (without any obstacles) to any setting and data
Interface: RS-485
Input voltage: 10 - 75 V DC
Output voltage: 0 - 60 V DC
Output current: 0 - 24 A
Power: 0 - 300 W
Voltage resolution: 10 mV
Current resolution: 10 mA
Ripple: < 50 mVpp
Response time: < 50 ms
Voltage display accuracy: 10 mV
Current display accuracy: 10 mA
Voltage fault tolerance: 2 ‰ + 1 digit
Current fault tolerance: 5 ‰ + 1 digit
Operating temperature: -10°C - 45°C
Dimensions: 131 x 112 x 55 mm
Weight: 0,48 kg
