Available

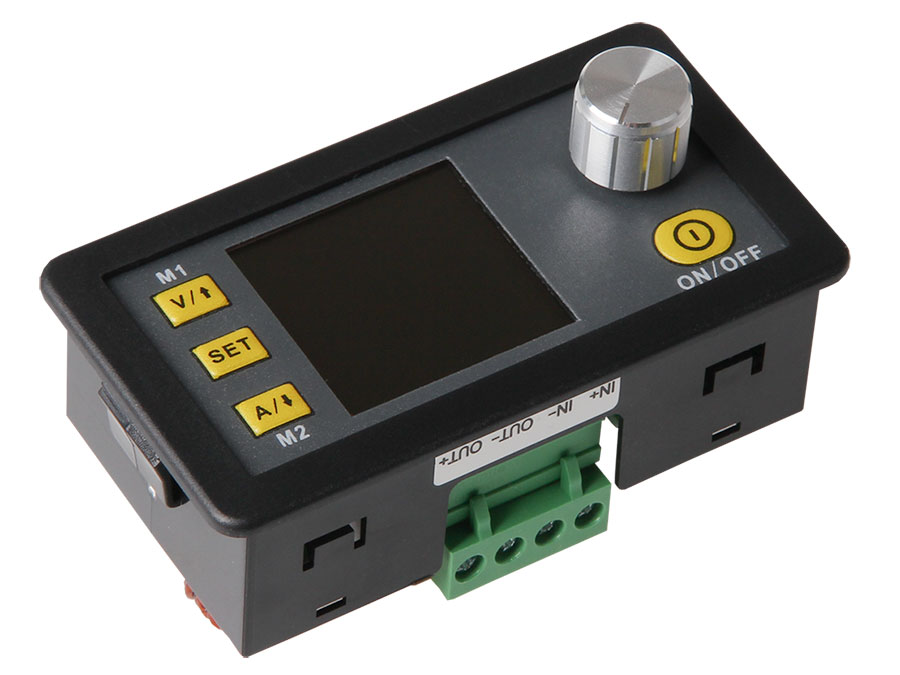

This programmable module for controlling voltage with a constant voltage and current which together is an analog integration and digital controll of functions in one device.
This device has an internal storage and a color OLED Display with 3,6 cm (1.44'') to display fast important data. All needed settings are set up with three buttons and a knob,
This high precision and compact structure enables a huge area of application.
High-quality components and the possibility of communication interfaces make the power supply stand out.
In addition, you can supplement the laboratory power supply with the optionally available housing, BT and USB modules. Thus your laboratory power supply receives a suitable housing and you can communicate via USB or BT with the laboratory power supply, retrieve data and make settings.
Special features: Remotely controlable, programmable, slim design
Input voltage: 6 - 55 V (DC)
Output Voltage: 0 - 50V
Output current: 0 - 5A
Output power: 0 - 250W
Voltage resolution: 0.01 V
Current resolution: 0.01 A
Ripple: 100mV(pp) at max. workload
Display size: 1.44“
Case cut-out: 39 x 71 mm
Dimensions: 42 x 45 x 80 mm
Weight: 88 g
