Enclosures for Electronic and Electrical Assemblies: A Complete Guide
Choosing the right enclosure for electronic or electrical assemblies is essential to ensure the protection, durability, and functionality of the components it houses. These enclosures not only safeguard against external factors like humidity, dust, or impacts but also facilitate the organization and accessibility of internal elements. Below is a detailed description of the different types of enclosures available on the market, with key information to help you select the most suitable option for your project.

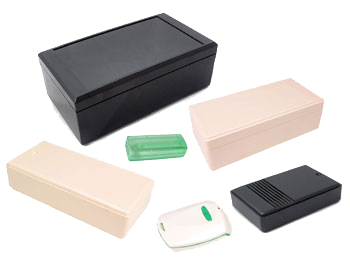

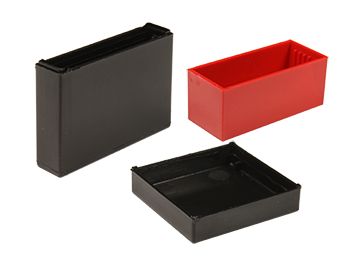

1. Universal Plastic Enclosures
Universal plastic enclosures are a versatile and lightweight solution suitable for a wide range of applications, from home projects to industrial environments. These enclosures are available in various plastic materials, each offering specific properties:
-
- ABS (Acrylonitrile Butadiene Styrene): Impact-resistant, excellent electrical insulation, and good heat resistance. Ideal for general electronics applications.
- Polycarbonate (PC): Known for its transparency, high mechanical strength, and ability to withstand harsh environmental conditions. Often used for enclosures with transparent covers.
- Polyamide (PA): A robust and chemically resistant material, particularly suited for industrial applications.
- PVC (Polyvinyl Chloride): Offers good resistance to moisture and wear, making it perfect for demanding environments.
These universal plastic enclosures may feature opaque or transparent covers, seals for enhanced waterproofing, and options for perforations to install connectors or buttons.

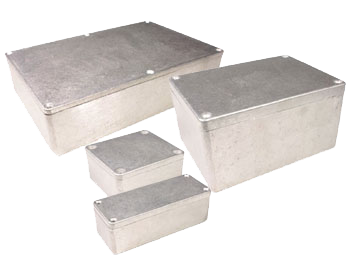

2. Waterproof Plastic and Aluminum Enclosures
Waterproof enclosures are essential for applications requiring protection from external elements such as water, dust, or corrosive gases. They are particularly useful in outdoor or industrial environments. These enclosures comply with key certifications such as:
-
- IP Protection Rating: Indicates the level of protection against solid particles and liquids. For example, an IP67-rated enclosure is completely dust-tight and can be temporarily submerged in water.
- ATEX Certification: Required for potentially explosive environments, the ATEX enclosures meet specific safety standards for hazardous areas like petrochemical plants.
- UV Resistance: Many waterproof enclosures, especially those made of polycarbonate or coated aluminum, include UV protection, making them ideal for outdoor use.
- Plastic enclosures are lightweight and corrosion-resistant, while aluminum models provide greater durability and excellent electromagnetic shielding.

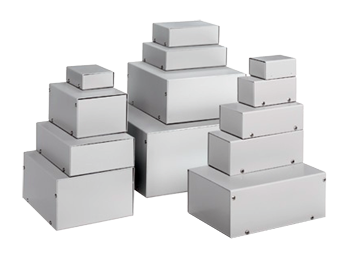

3. Universal Metal Enclosures
Metal enclosures are perfect for applications requiring high impact resistance, protection against electromagnetic interference (EMI), and exceptional durability. Made from stainless steel, galvanized steel, or anodized aluminum, these enclosures are widely used in demanding industrial environments, offering a robust and professional finish.
4. Desktop Enclosures
Desktop enclosures are designed with ergonomics in mind. Their sloped design makes it easier to access and view controls, displays, or keyboards. These are ideal for applications requiring regular user interaction, such as control panels in laboratories, workshops, or industrial systems.
5. Instrumentation Enclosures
Instrumentation enclosures are specifically designed to house measurement, analysis, or control equipment. Their design includes internal supports for printed circuit boards, ventilation slots, and removable covers for easy access to internal components. They also offer a professional appearance, making them ideal for laboratories and research centers.

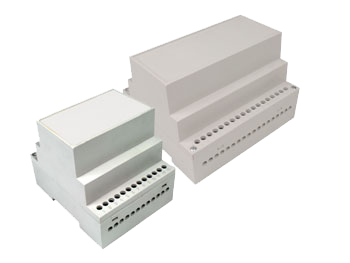

6. DIN Rail Enclosures
DIN rail enclosures are indispensable in industrial automation and electrical systems. Their modular design allows for quick and secure installation in electrical cabinets and control panels. Available in reinforced plastic or aluminum, they may include pre-configured terminals and slots for heat dissipation.
7. Junction Boxes
Junction boxes are used to protect and organize electrical connections, ensuring safe electricity distribution. These enclosures are widely used in domestic and industrial installations, featuring removable covers, cable entry points, and seals for better protection in outdoor environments.

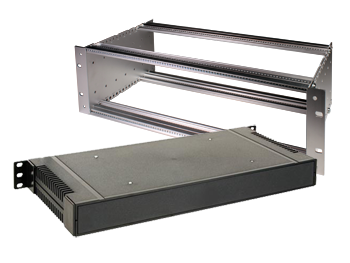

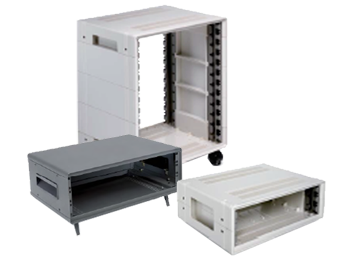

8. 19" Enclosures and Subracks
19" racks are the standard for electronic equipment like servers, amplifiers, and telecommunications systems. Enclosures and subracks designed for this format ensure secure and organized housing for standard-sized devices, providing durability and efficiency in industrial and commercial applications.

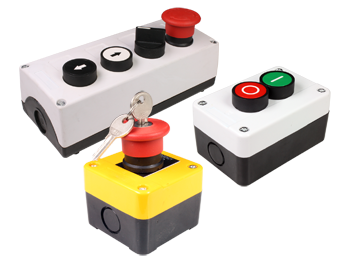

9. Control Enclosures
Control enclosures are designed for control systems in industrial applications. They feature standard 22.5 mm openings for installing switches, buttons, or indicator lights. Available in various sizes and materials, they are highly adaptable to operational needs.

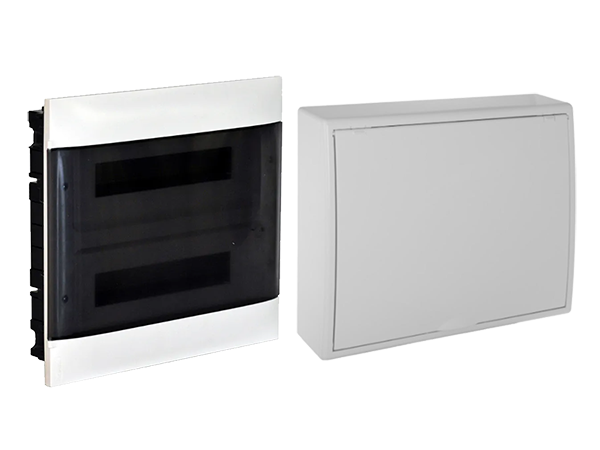

10. Electrical Distribution Enclosures
Designed to house and protect electrical distribution components, such as circuit breakers and fuses, these enclosures allow for safe and efficient installation. They are available for domestic, commercial, and industrial use and meet electrical safety standards.
Key Factors for Choosing the Right Enclosure
When selecting an enclosure for electronic or electrical assemblies, consider the following factors:
- Material: Choose between plastics (ABS, polycarbonate, etc.) or metals based on the application.
- IP Protection Rating: Evaluate the required level of waterproofing.
- Certifications (ATEX, UV): Check if specific standards are required.
- Size and Compatibility: Ensure the dimensions and design are suitable for the components.
With this information, you can confidently select the ideal enclosure to protect, organize, and extend the lifespan of your projects.
